Description

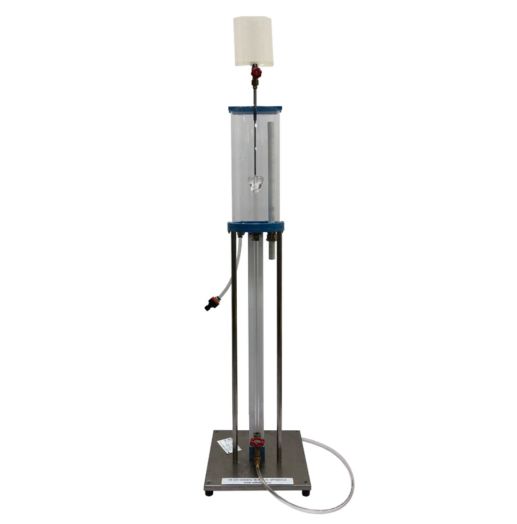

For studying laminar, transitional, and turbulent flow. Features a transparent tank with adjustable overflow pipe. Water admitted via diffuser and stilling materials, discharged via bellmouth transparent tube with flow control valve. Flow rate measured by hydraulics bench or measuring cup. Dye injection system for flow pattern observation. A horizontal version is also available.
Often used in conjunction with FM 100 Hydraulics Bench.
