Description

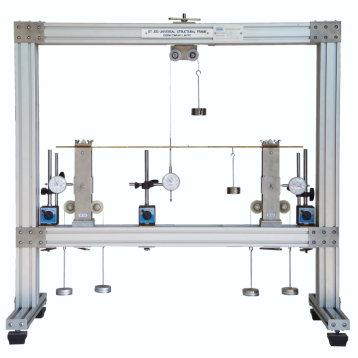

To work with the universal test frame. For verification of the deflections and slopes of a beam by area-moment method. The beam has 2 pivoted end supports with knife edge for longitudinal travel and vertical displacement of the beam. Each support has a rotating arm. The angle of rotation is measured by the arm displacement using a dial gauge. The moment is applied and measured by load on the rotating arm. The beam deflection is measured by a dial gauge.
Optional PC Interface
